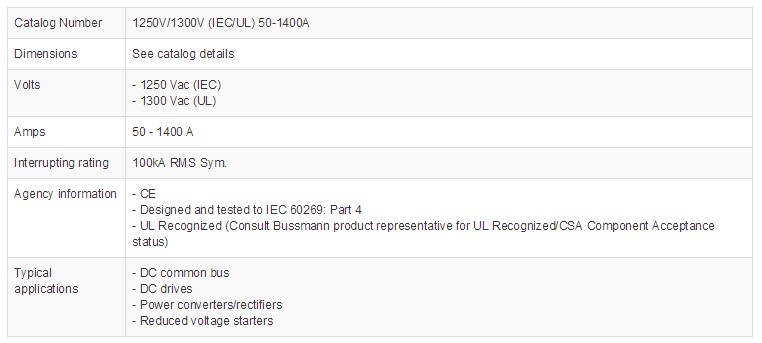

Square Body Flush End Contact — 1250V/1300V IEC/UL: 50-14

   Square body flush end contact high speed fuses

   Watts loss provided at rated current.

   Microswitch indicator ordered separately. See accessories on pages 185-186.

   For fuse curves see pages 166 and 167.

†Rated voltage (IEC) 1100V.

‡Rated voltage (IEC) 1000V.

\Rated voltage (IEC) 1250V.

• Watts loss provided at rated current.

• Microswitch indicator ordered separately. See accessories on pages 185-186.

• For fuse curves see pages 166 and 167.

   FEATURES

   Excellent DC performance

   Low arc voltage and low energy let-through (I2t)

   Low watts loss

   Superior cycling capability
